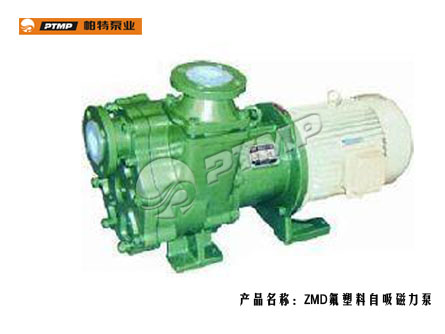

ZMD Self-priming Fluor plastics Magnetic Pumps

product class:Magnetic pump series

product name:ZMD Self-priming Fluor plastic....

Performance data	Range of capacity	1.8~1450m³/h
	Range of head	≤133m
	Medium temperature	-10℃~120℃
	Ambient temperature	Up to 40℃
	Maximum working pressure	suction pressure+head of pump≤1.6MPa
Motor data	Supporting power
	Voltage	380V
	Frequency	50HZ
	Rotating speed	2900r/min,1450r/min,970r/min
	Protection class	IP44/IP54
	Insulation class	B/F
Material	pump body , pump cover,impeller	cast iron
	Pump shaft	45 steel /stainless stell 3Crl3
	Mechanical seal	silicon carbide,graphite,tungsten carbide,hard alloy and etc.

overview
feature
purpose
Model significance
Show case
data behavioral
Application area

    ZMD series of self-suction magnetic drive pumps integrate advantages of self-suction pumps and magnetic pumps. It owns function of self-suction, cancels shaft seal, and drives by magnetic coupling to eliminate dripping and leakage completely.
    ZMD series of magnetic drive pumps adopt spacer sleeves made of most updated materials, with high-strength mechanics properties, and eliminate magnetic eddy current of common magnetic drive pumps completely.
    ZMD series of magnetic drive pumps adopt unique rear pull structure. Only one person is able to complete interior maintenance and replacing of components, no need to disassemble pipes, which makes daily examination and maintenance much more convenient.

ZMD series of self-suction magnetic drive pumps are widely applied in industries such as petrochemical industry, non-ferrous metal smelt, pesticide, acid and alkali manufacturing, papermaking, pickling technology, rare earth dialysis, electroplating and electronics etc., and it is the most updated magnetic drive pump currently.
