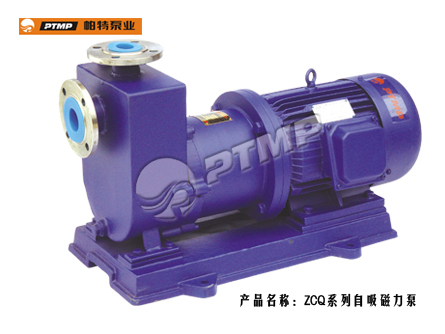

ZCQ spontaneous imbibition magnetic drive pump



 product class:Magnetic pump series
 product name:ZCQ spontaneous imbibition mag....



Performance

 data

  Range of capacity      1.8~1450m³/h
Range of head  ≤133m
Medium temperature  -10℃~120℃
Ambient temperature   Up to 40℃
Maximum working pressure suction pressure+head of pump≤1.6MPa
Motor data

Supporting power


Voltage  380V
Frequency  50HZ
Rotating speed  2900r/min,1450r/min,970r/min
Protection class  IP44/IP54
Insulation class  B/F
Material pump body , pump cover,impeller  cast iron
Pump shaft  45 steel /stainless stell 3Crl3
Mechanical seal  silicon carbide,graphite,tungsten carbide,hard alloy and etc.

  • overview
  • feature
  • purpose
  • Model significance
  • Show case
  • data behavioral
  • Application area


   Just as its name implies, self-priming pump doesn’t need priming water before start. After a short time f running, water is absorbed by pump itself for normal operation. ZCQ self-priming magnetic pump is not only provided with self-priming function, but also of magnetism-driven structure. Featured by full seal and leak-tightness, it is an optimal pump for automated distant control and for floating uses.


Material of Wet Parts: Stainless Steel (Austenite)
Connecting Type: Flange
Head H: 12～50(m)
Power N: 0.37～7.5(kw)
Medium Temperature(t): -20℃～100℃
Flow Q:3～27(m3/h);Kinematics Viscosity of medium: ≦30×10-6(m3/s)

ZCQ65-50-145
Z-Self-priming type
CQ-Magnetic pumps
65-Inlet diameter(mm)
50-Outlet diameter(mm)
145-Impeller diameter(mm)
