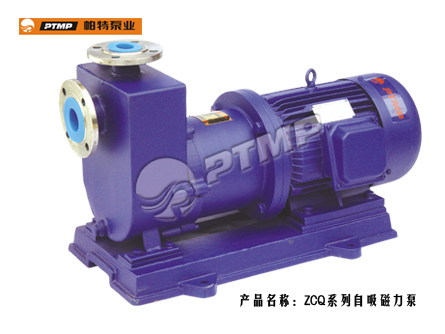

ZCQ spontaneous imbibition magnetic drive pump

product class:Magnetic pump series

product name:ZCQ spontaneous imbibition mag....

Performance data	Range of capacity	1.8~1450m³/h
	Range of head	≤133m
	Medium temperature	-10℃~120℃
	Ambient temperature	Up to 40℃
	Maximum working pressure	suction pressure+head of pump≤1.6MPa
Motor data	Supporting power
	Voltage	380V
	Frequency	50HZ
	Rotating speed	2900r/min,1450r/min,970r/min
	Protection class	IP44/IP54
	Insulation class	B/F
Material	pump body , pump cover,impeller	cast iron
	Pump shaft	45 steel /stainless stell 3Crl3
	Mechanical seal	silicon carbide,graphite,tungsten carbide,hard alloy and etc.

overview
feature
purpose
Model significance
Show case
data behavioral
Application area

Just as its name implies, self-priming pump doesn’t need priming water before start. After a short time f running, water is absorbed by pump itself for normal operation. ZCQ self-priming magnetic pump is not only provided with self-priming function, but also of magnetism-driven structure. Featured by full seal and leak-tightness, it is an optimal pump for automated distant control and for floating uses.

Material of Wet Parts: Stainless Steel (Austenite)
Connecting Type: Flange
Head H: 12～50(m)
Power N: 0.37～7.5(kw)
Medium Temperature(t): -20℃～100℃
Flow Q:3～27(m³/h);Kinematics Viscosity of medium: ≦30×10-6(m³/s)
