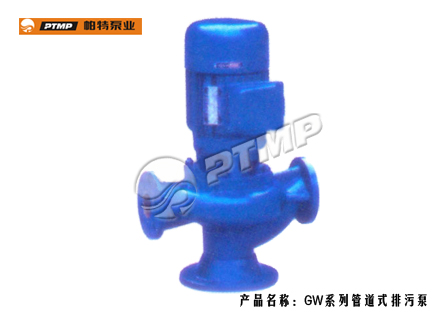

GW Series Efficiently Non-Stop Sewage Pump

product class:Sewage pump series

product name:GW Series Efficiently Non-Stop....

Performance data	Range of capacity	1.8~1450m³/h
	Range of head	≤133m
	Medium temperature	-10℃~120℃
	Ambient temperature	Up to 40℃
	Maximum working pressure	suction pressure+head of pump≤1.6MPa
Motor data	Supporting power
	Voltage	380V
	Frequency	50HZ
	Rotating speed	2900r/min,1450r/min,970r/min
	Protection class	IP44/IP54
	Insulation class	B/F
Material	pump body , pump cover,impeller	cast iron
	Pump shaft	45 steel /stainless stell 3Crl3
	Mechanical seal	silicon carbide,graphite,tungsten carbide,hard alloy and etc.

overview
feature
purpose
Model significance
Show case
data behavioral
Application area

Should pump to usher in the abroad efficiently the stanza can have no to stop to line up the dirty pump advanced experience, combination this unit technique the power research to manufacture but, the index sign of various functions all attain the level of national standard of the same kind product.Because of the special and single passage leaf's round of adoption quality metal alloy for, moving seal completelying adopting two special materials the machine seal completely the device.The electrical engineering partition, has to have no to stop with oil room, high-efficiency, the stanza can show the , and is an our country pump type latest product for renewing changing the on behalf, deep and enjoyable door is welcome with the good opinion.

40GWP15-30-2.2
40-Outlet dia.
GW-GW sewage pump
P-Stainless steel in-line non-stop
15-Capacity
30-Head
2.2-Power of motor
