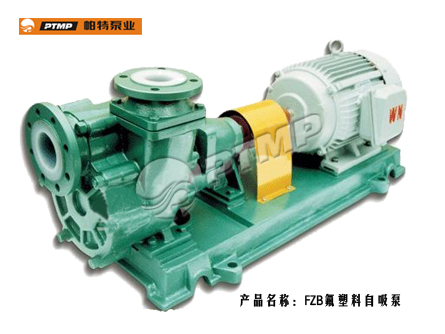

FZB Fluor Plastic Lining Self-Suction Pump
| product class:Self-sucking pump series |
| product name:FZB Fluor Plastic Lining Self-.... |
|
Performance data |
Range of capacity | 1.8~1450m³/h |
| Range of head | ≤133m | |
| Medium temperature | -10℃~120℃ | |
| Ambient temperature | Up to 40℃ | |
| Maximum working pressure | suction pressure+head of pump≤1.6MPa | |
| Motor data |
Supporting power |
|
| Voltage | 380V | |
| Frequency | 50HZ | |
| Rotating speed | 2900r/min,1450r/min,970r/min | |
| Protection class | IP44/IP54 | |
| Insulation class | B/F | |
| Material | pump body , pump cover,impeller | cast iron |
| Pump shaft | 45 steel /stainless stell 3Crl3 | |
| Mechanical seal | silicon carbide,graphite,tungsten carbide,hard alloy and etc. |
- overview
- feature
- purpose
- Model significance
- Show case
- data behavioral
- Application area
FZBseries of self-suction centrifugal pumps, its overflow part is made of fluoroplastic alloy. Its most prominent advantage is that it owns function of self-suction, and height of self-suction can be detemined between 1~3 meters according to density of media.
This product is widely applied in industries such as chemical industry, pesticide, acid&alkali products manufacturing, papermaking, pickling technology and electronics etc.
Operating temperature:-20℃~100℃
